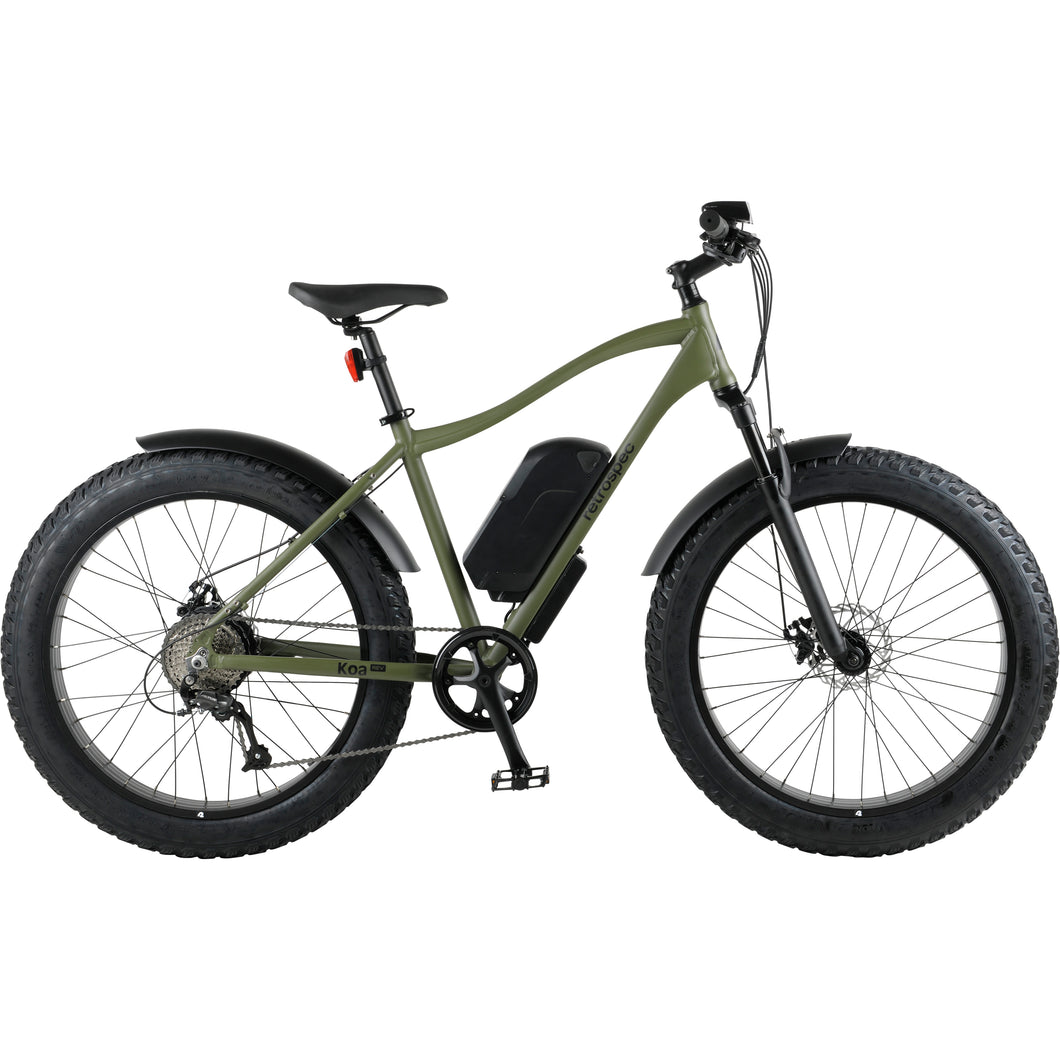

Built to handle any road (or lack thereof)
The Koa Rev makes your on-and-off-roading a comfortable ride. A 46-mile battery range can handle even the longest of trips. Assisted start technology makes awkward start and stops a thing of the past, and a 20 MPH top speed with extra stable, Fat 26 x 4.0 tires allow you to conquer any terrain on the way to your adventure.
On-road precision. Off-road performance. All-around comfort.
From everyday neighborhood cruising to adventuring off-road, Koa Rev is the ultimate down-for-anything ride. This e-bike can handle any terrain like a champ and look good while doing it. Equipped with fat, grippy tires to soak up bumps and cracks in the road and a powerful motor to propel you to new heights, you’ll never get tired of riding.
Get to know your ride
.svg?v=0&options=)
20mph
Top speed
.svg?v=0&options=)
Up to 46 Miles of Range
High-range Rev e-bike
.svg?v=0&options=)
6 Pedal Assist Levels
Propel while pedaling
.svg?v=0&options=)
750W
Brushless rear hub motor
.svg?v=0&options=)
48V
Li-ion battery
4” Fat Tires
Conquer any terrain
Features

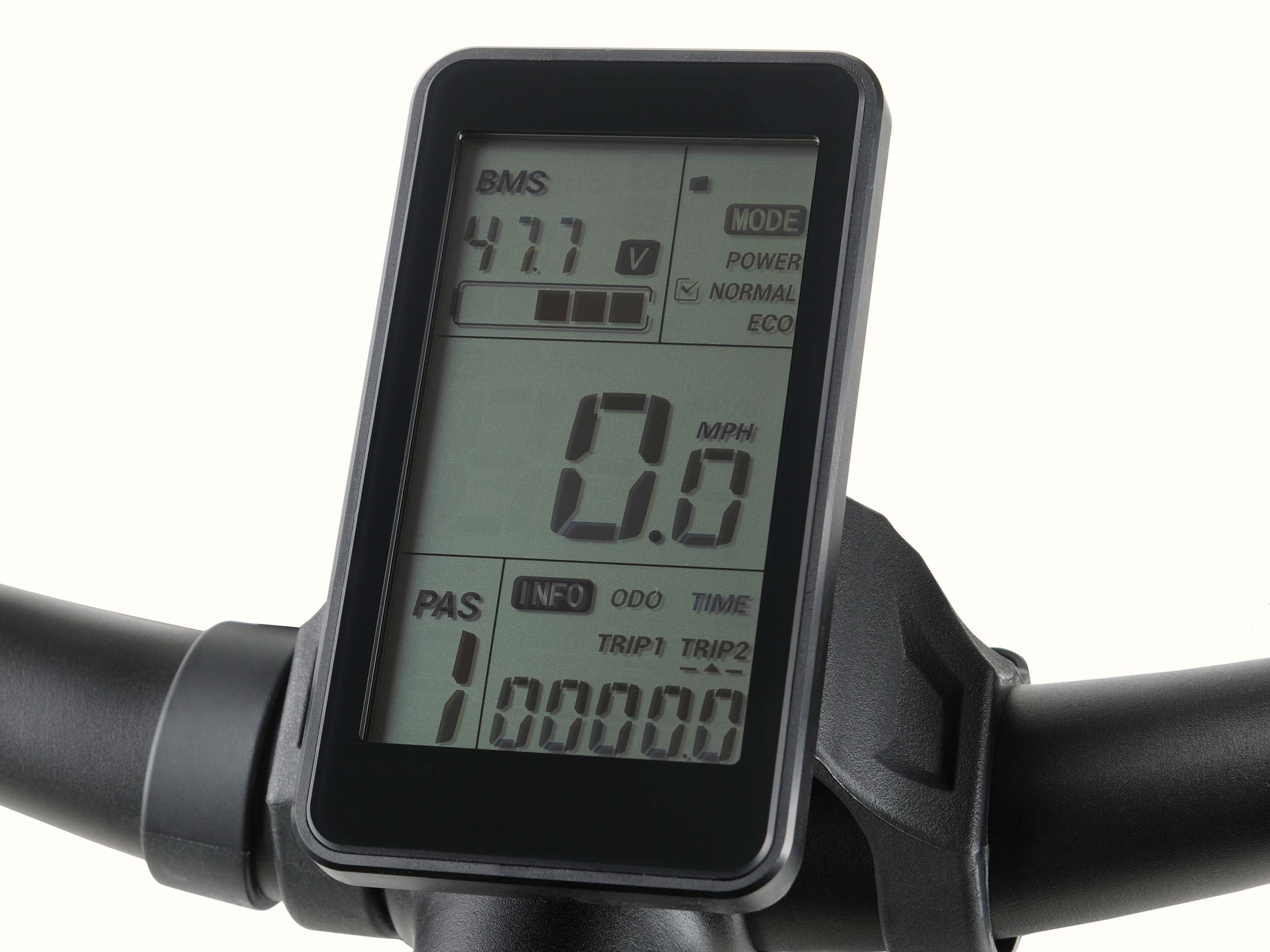

Quick Access to Controls
Handlebar-mounted LED control panel lets you quickly select your pedal assistance level, from 1-6, and keep track of your charge as you ride.

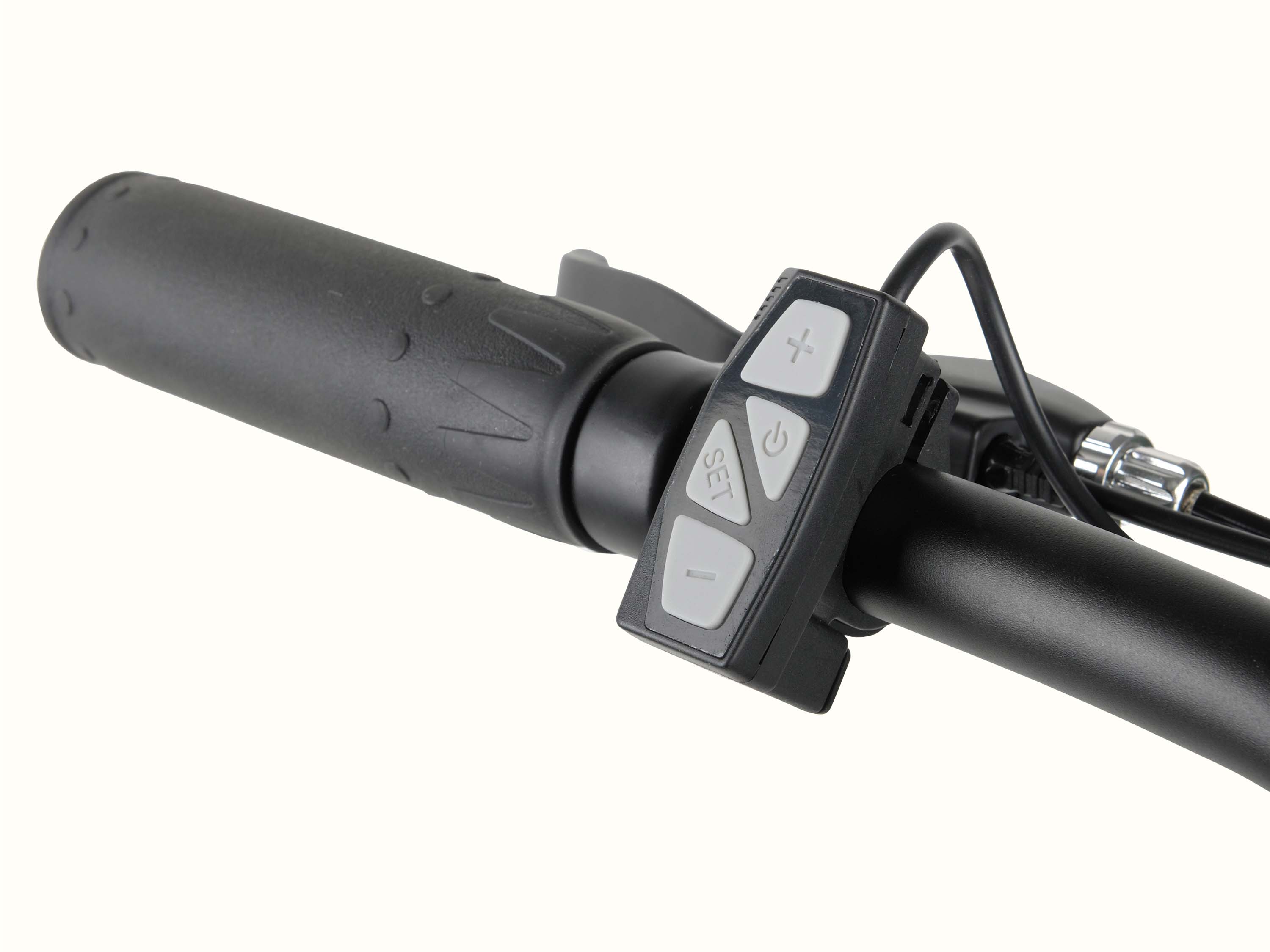

No More Wobbles
Activate Start Aid and the motor will push the e-bike at 4 mph for momentum at takeoff and no wobbly first pedal strokes.
Twist to Go

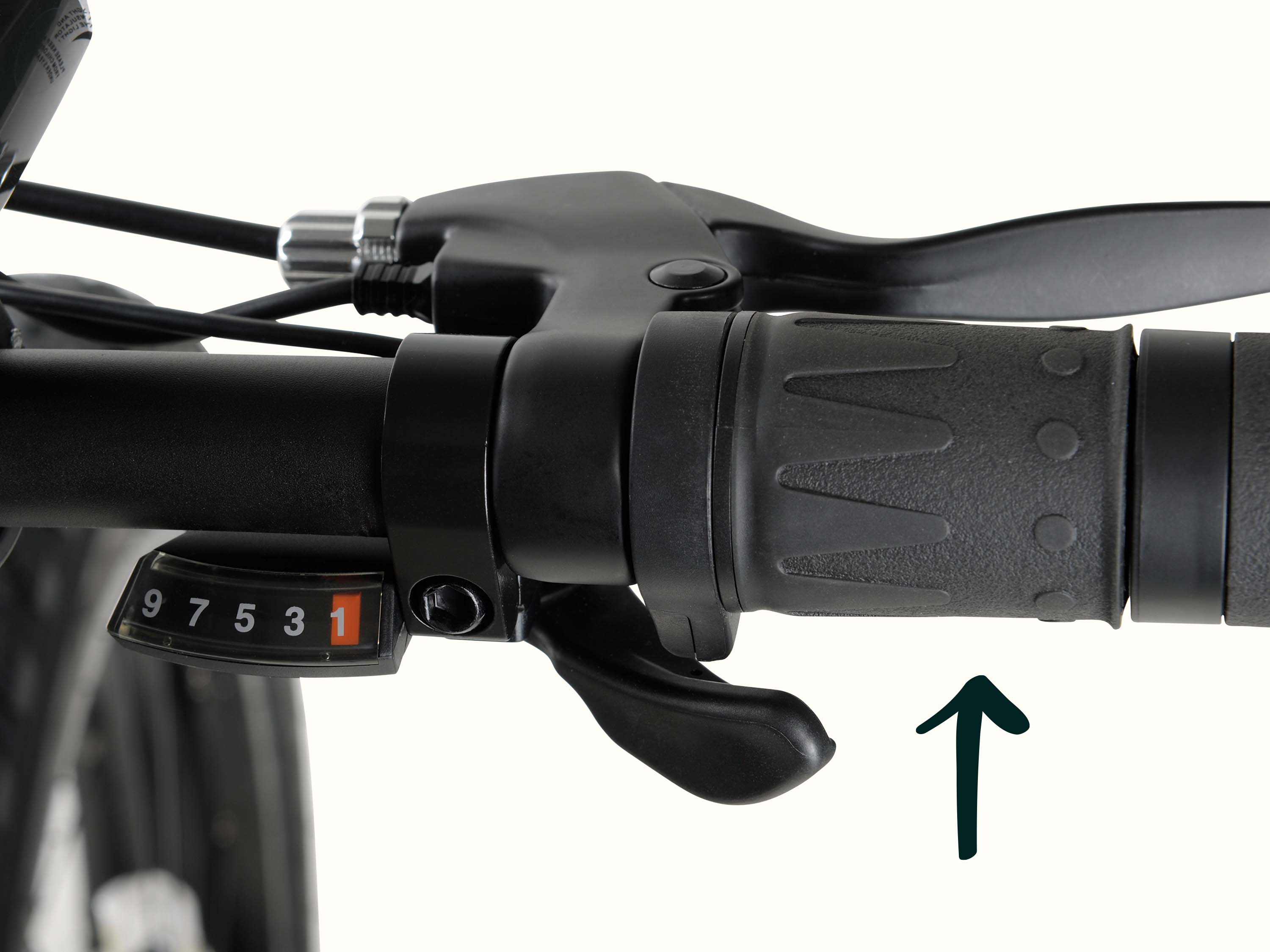

Convenient twist throttle puts 750W worth of power at your fingertips.
Durable, Long-Lasting, High Range

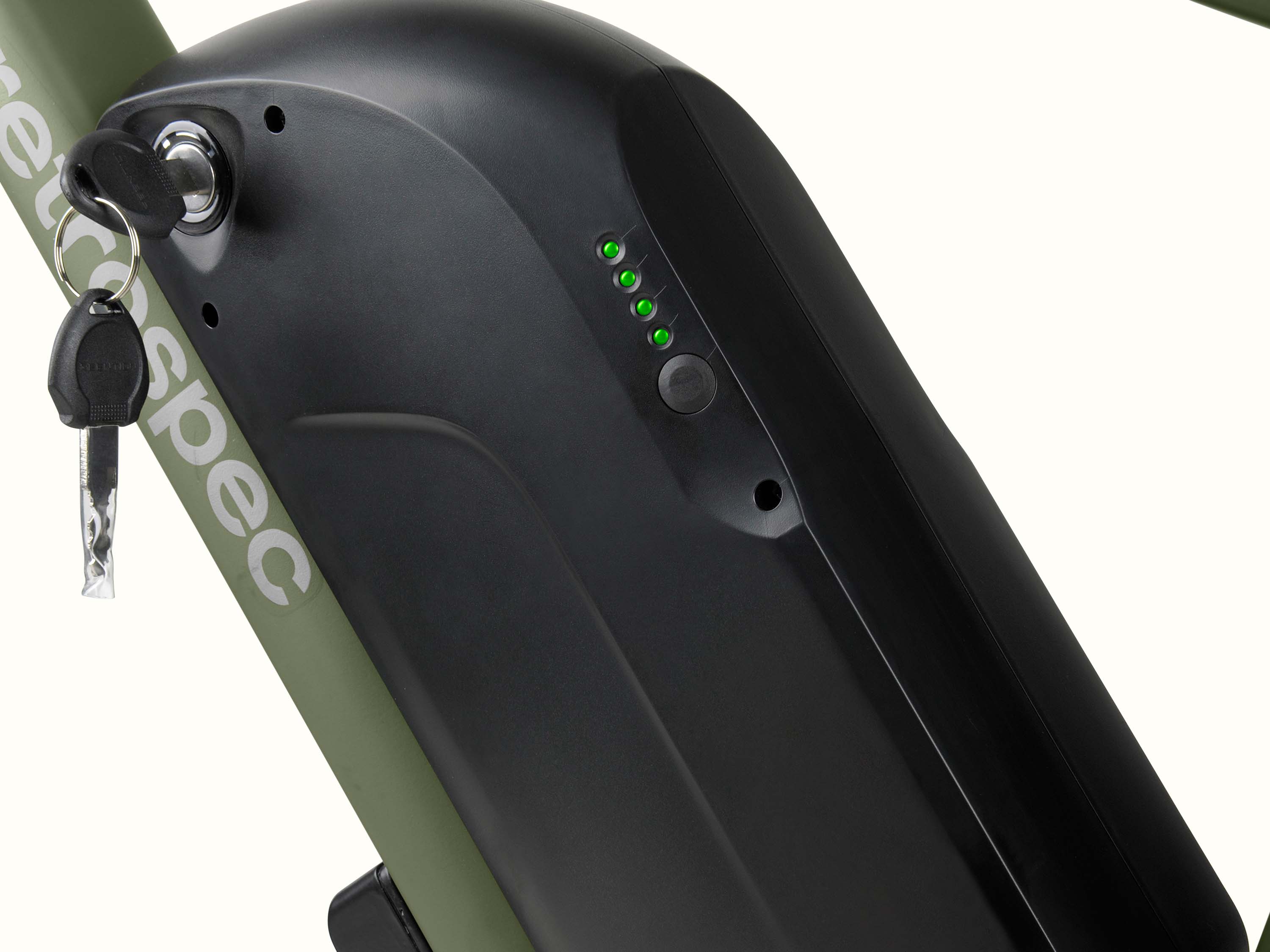

Li-ion Battery offers a range of up to 46 miles. Charges within 5-6 hours.
Off-Road Ready

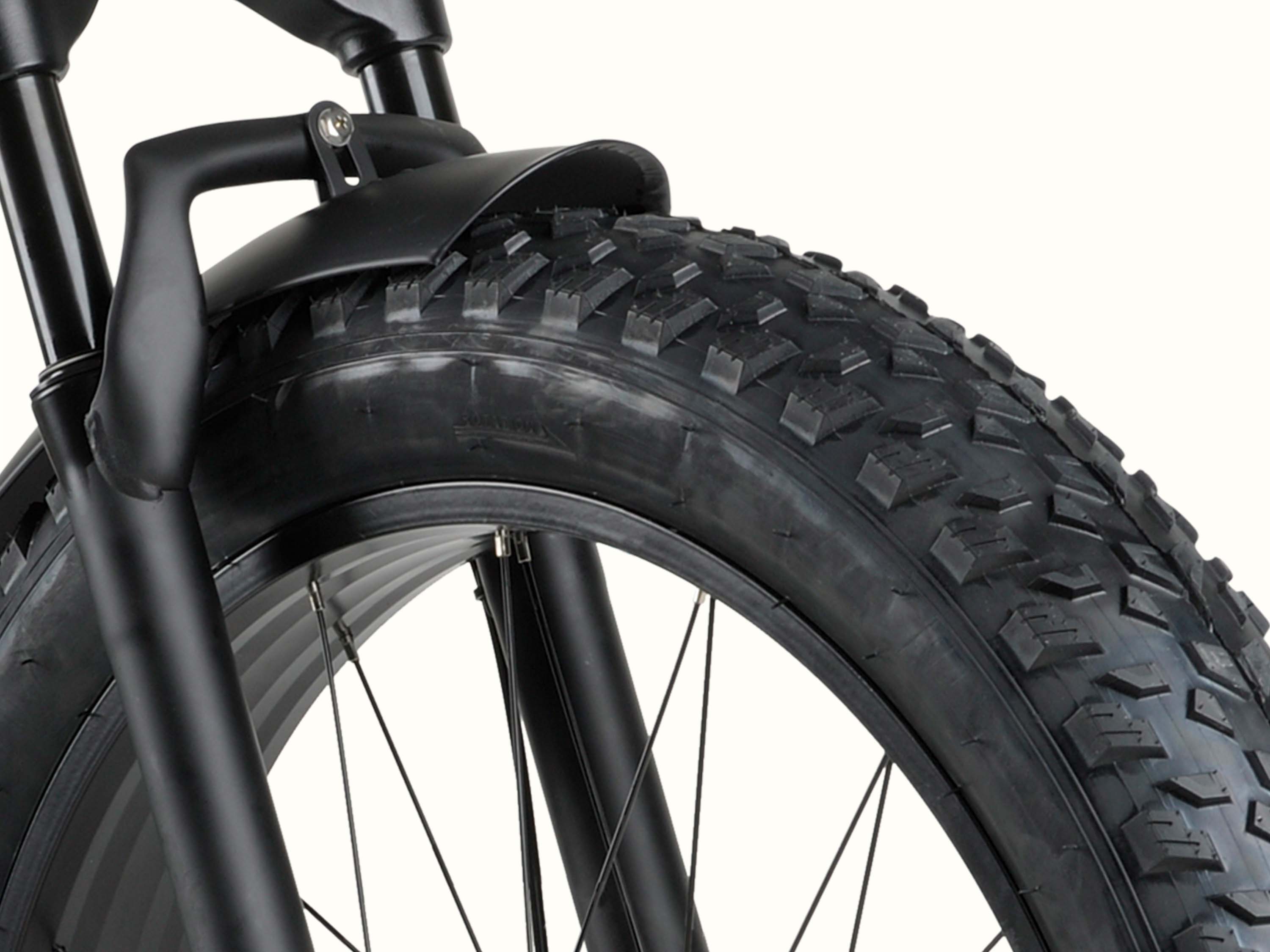

Fat 26x4.0 tires comfortably roll over grates, driveway bumps, and worn-down roads while large tread grips onto chattery terrain for enhanced stability.
Tackle Inclines or Cruise Flats

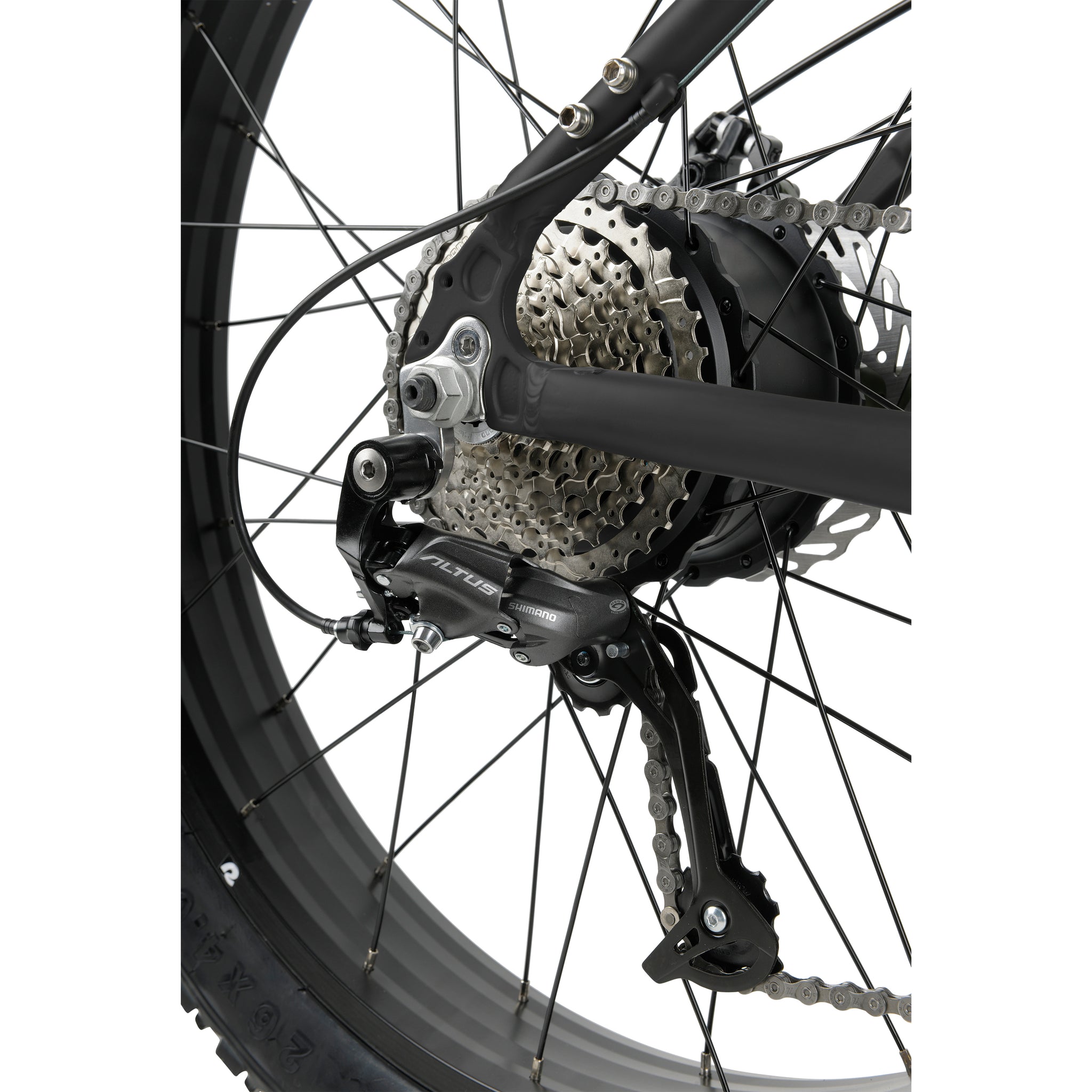

With a robust, versatile Shimano 9-speed drivetrain.
Best for all terrain
- SPECIFICATIONS
- SIZING
- FINANCING
- OWNER'S MANUAL
Specification
FRAMESET
- Sizes1 size 26" x 482mm/48cm/19"
- MaterialAlloy, 6061 TIG welded, hydroformed tubing
- Dropouts1x rear fender eyelets, rear rack mounts
- ForkSuspension fork 80mm travel, alloy crown, steel stanchions, steel lowers, 1 1/8" (28.6mm)
WHEELSET
- RimsAlloy double-wall, 26" x 4.0 x 36H x 13G
- HubsF: Alum bolt-on 135mm, R: Hub motor bolt-on, 36H x 13G, 185mm
- Spokes13G w/brass nipples, black ED finish
- Tires26 x 4.0, S/V
E-POWER SYSTEM
- 48V/750W MotorBrushless rear hub motor, 9-pin connector, MXUS
- 48V/750W BatteryLi-ion + Charger w/US plug, w/power level display.
- Drive Mode, DisplayPAS/twist throttle Right side FT158X twist throttle, speed sensor, LCD display panel w/6 PAS levels (Pedal Assist System), w/Start-Aid 6kph (~4mph).
- 48V/750W rangeUp to 46 miles
DRIVETRAIN
- Rear DerailleurShimano Altus 9S
- ShifterAltus Rapidfire Plus, w/OGD & Clamp Band
- CranksetProwheel 170mm x 42T w/inside chainguide, outside chainring cover
- ChainKMC 3/32" x 118L
- BBSteel sealed cartridge, 120mm x 175mm
- Freewheel/CogShimano 9-speed
COMPONENTS
- HeadsetThreadless, 1 1/8" (28.6mm) semi-integrated, steel+alum
- BrakesJAX Mechanical disc Front & Rear, 160mm
- HandlebarsAlloy 680mmW x 25mm Rise
- GripsComfort
- StemAlum alloy threadless, 90mm ext x 7° rise
- SaddleSuperSoft MTB
- SeatpostAlloy, 30.4 x 300mmL, black
- Seatpost ClampAlloy QR
- PedalsAlloy platform, loose-ball 9/16"
EXTRAS
ARider Height
BInseam
CTop Tube
- KickstandRear mount, adjustable, aluminum alloy
- Light(s)Front (2x AA) + Rear (2x AA), batteries included
- ChaincoverChainring cover (not chaincover)
- Tools4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver
- Recommended Weight Limit250lbs
- Item Weight74 lbs (battery included)
- CompatibleWith Retrospec Rover Trailers
Sizing
How to measure my inseam for a bike
Your inseam can help you find the perfect sized bike (measuring it properly is similar to pant inseams but measured a little differently). Here's how they work:
- Stand upright with your feet 6-8" apart.
- Using a tape measure or tailor tape, measure from the bottom of your foot to the top of the inside of your leg.
- Compare your inseam measurement to the standover height of the bike. You should have about an inch of space between your body and the top tube.
| SIZE | HEIGHT RANGE | STANDOVER HEIGHT |
| Frame: 19" | 5'10" - 6'3. | 35" |
