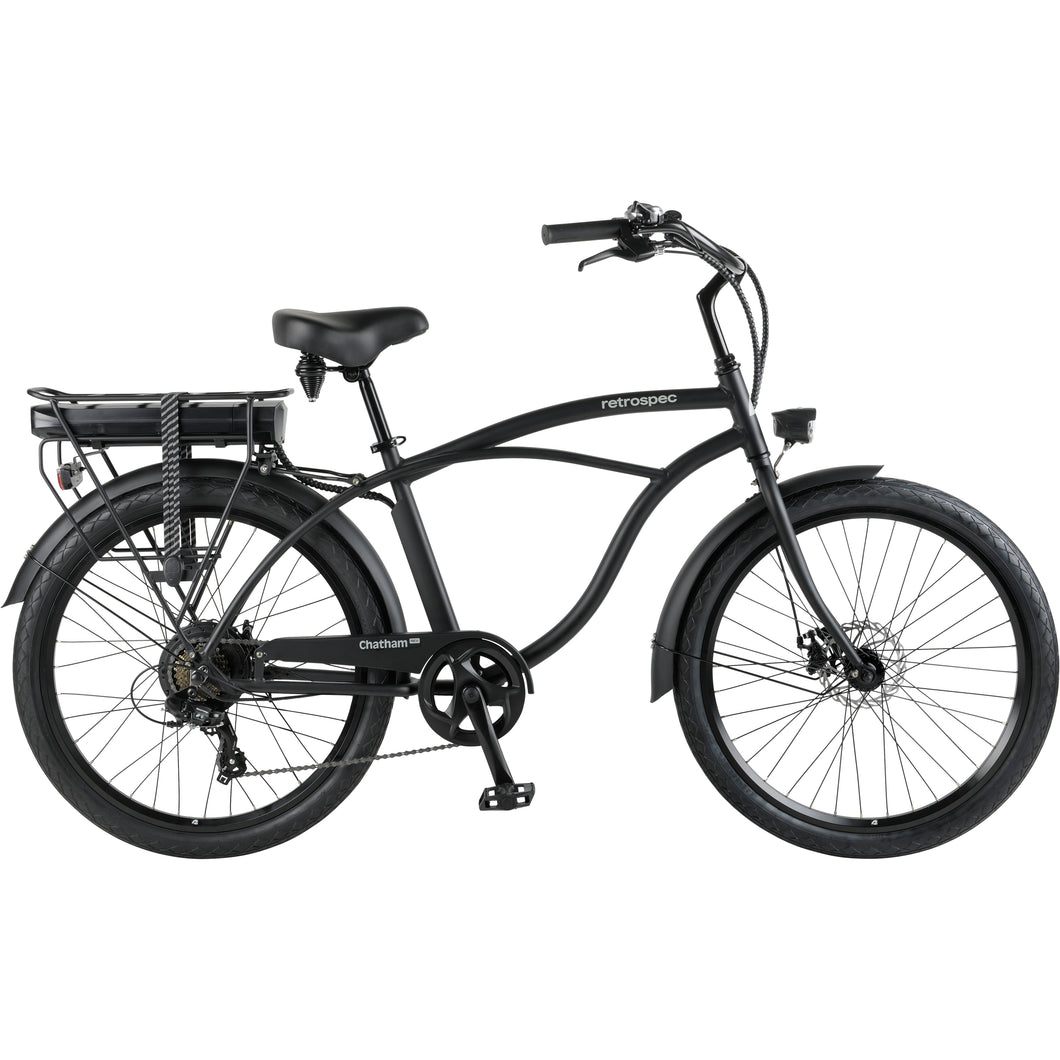

Designed to cruise in comfort
Chatham Rev makes your trips easy and comfortable. Start Aid 4 mph boost lets you start riding without wobbles and a top speed of 20 MPH helps you get to the beach, pool, or anywhere in between in no time. Haul what you need for the trip with a sturdy rear bike rack, plus, a wide comfort saddle and cushioning 26 x 2.40 tires make this one of the smoothest rides to kick back on.
Catch a breeze with electric ease
Chatham Rev is the ultimate electric beach cruiser bike for riders seeking the most comfortable way to cruise by the beach, around the neighborhood, or through town. With a design that celebrates the recreational beach cruisers of the 80s and 90s and their carefree sentiment, Chatham Rev evokes a feeling of freedom, independence, and fun in the sun. Wherever the wind takes you, take Chatham Rev.
Get to know your ride
.svg?v=0&options=)
20mph
Top speed
.svg?v=0&options=)
Up to 28 Miles of Range
Cruise for miles
.svg?v=0&options=)
6 Pedal Assist Levels
Propel while pedaling
.svg?v=0&options=)
350W
Brushless rear hub motor
.svg?v=0&options=)
36V
Li-ion battery
Features

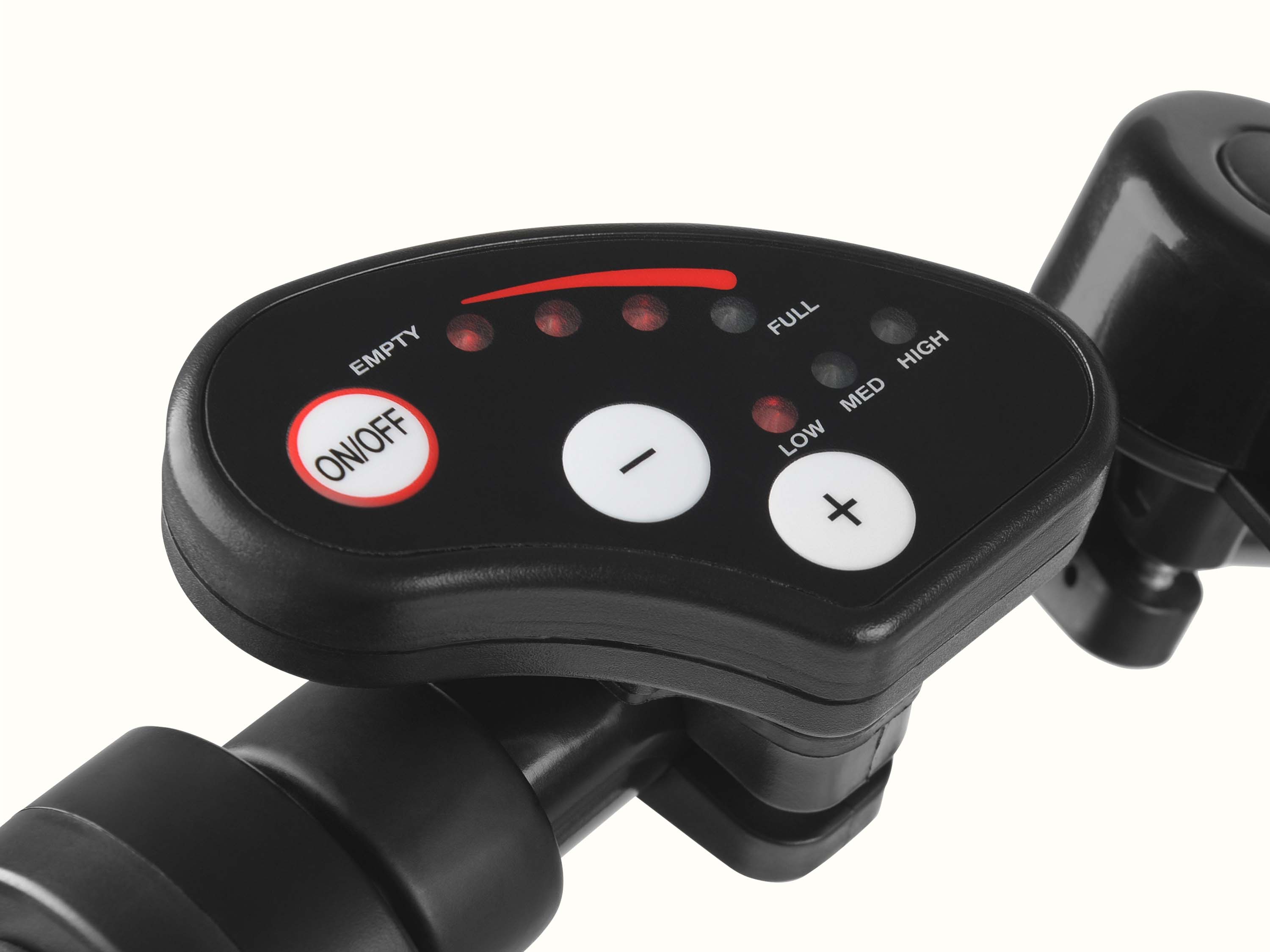

Quick Access to Controls
Handlebar-mounted LED control panel lets you select pedal assist level, monitor charge, and activate Start Aid for a 4mph boost at takeoff – no wobbly first pedal strokes.

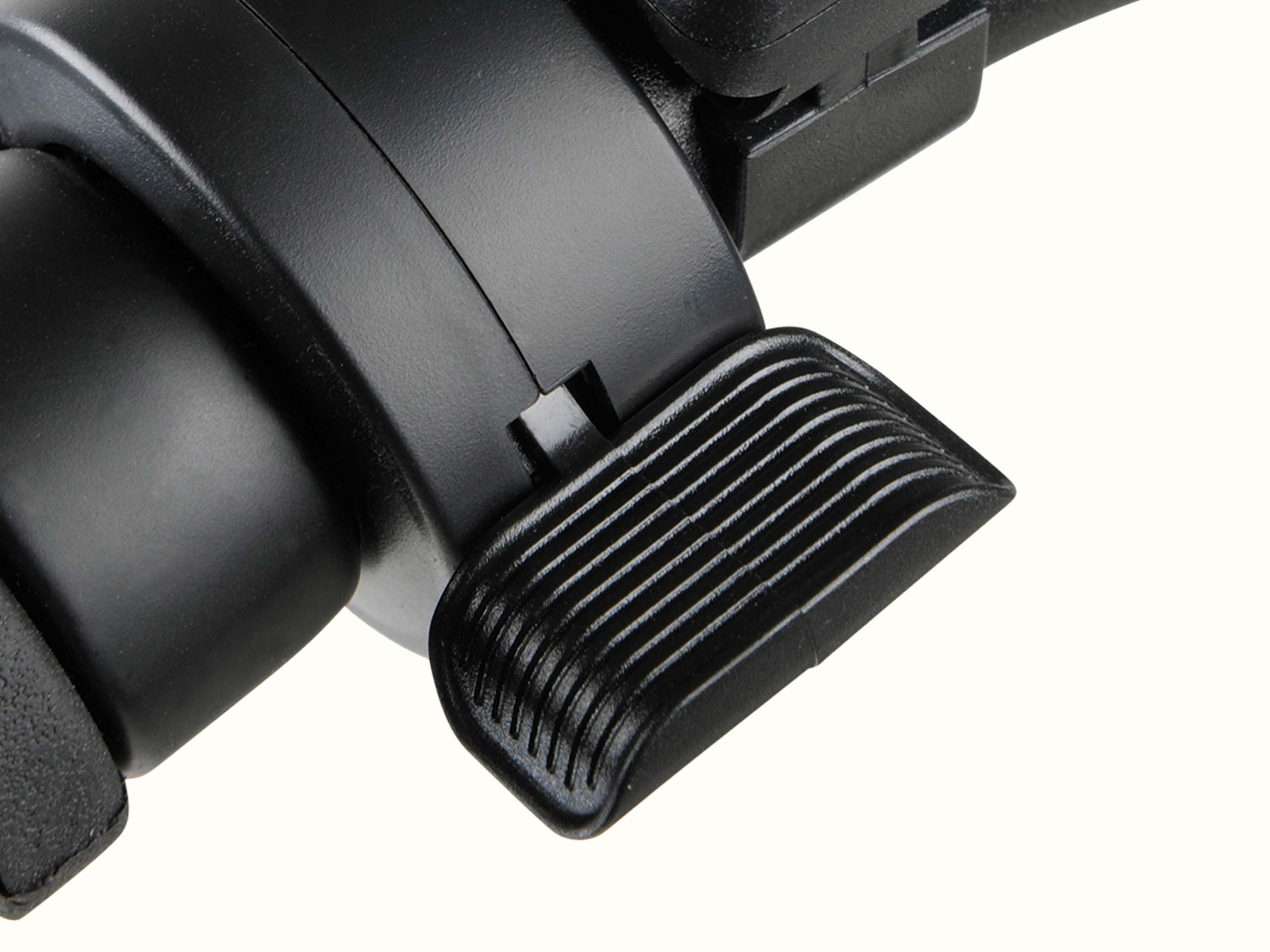

Press to Go
Convenient thumb throttle puts 350W worth of power at your fingertips.
Durable, Long-Lasting, High Range
Li-ion battery offers a range of up to 28 miles. Charges within 5-6 hours.

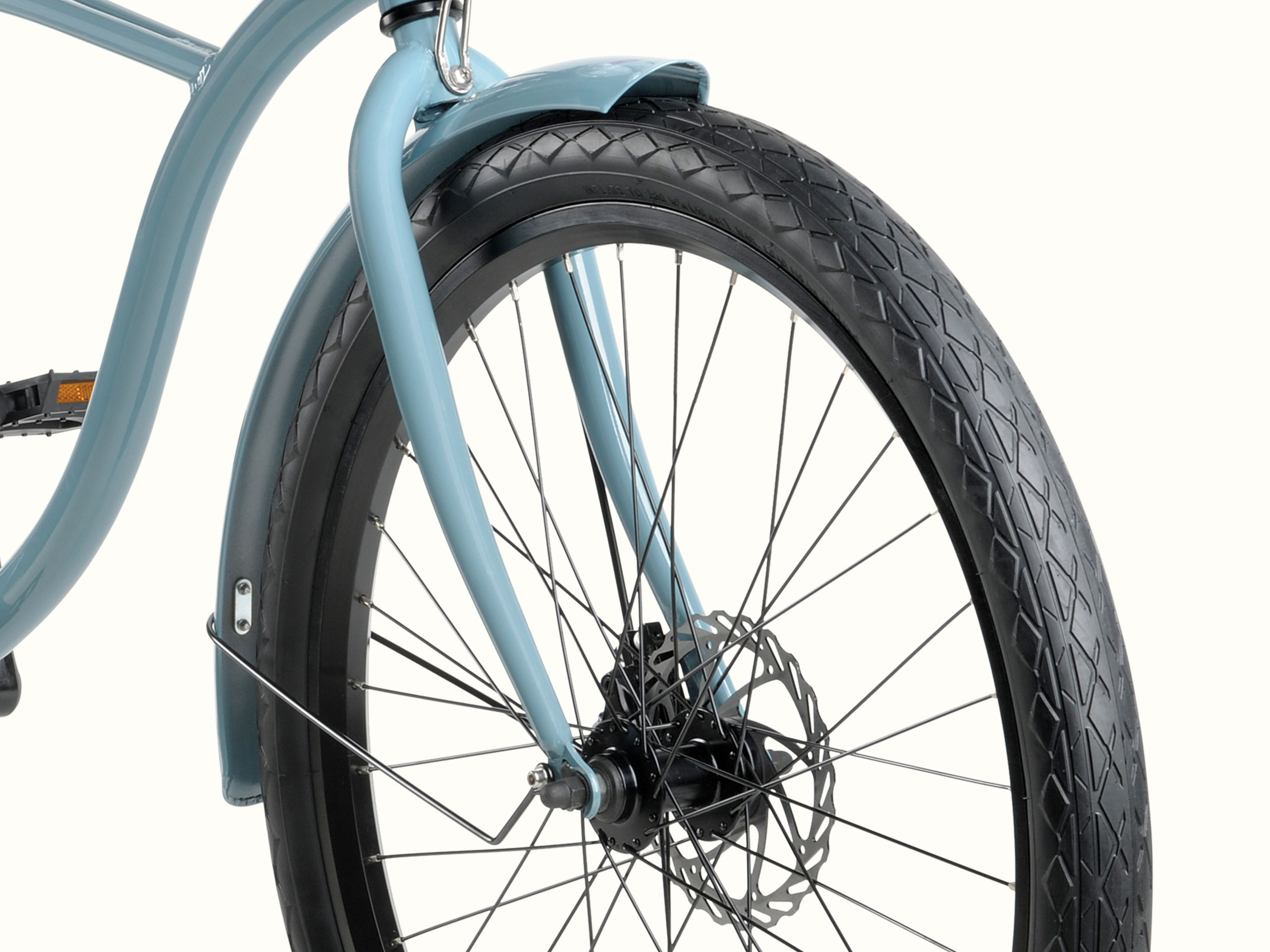

Cruise Smoothly
2.40-inch wide, grippy tires roll right over bumps for a smooth ride.

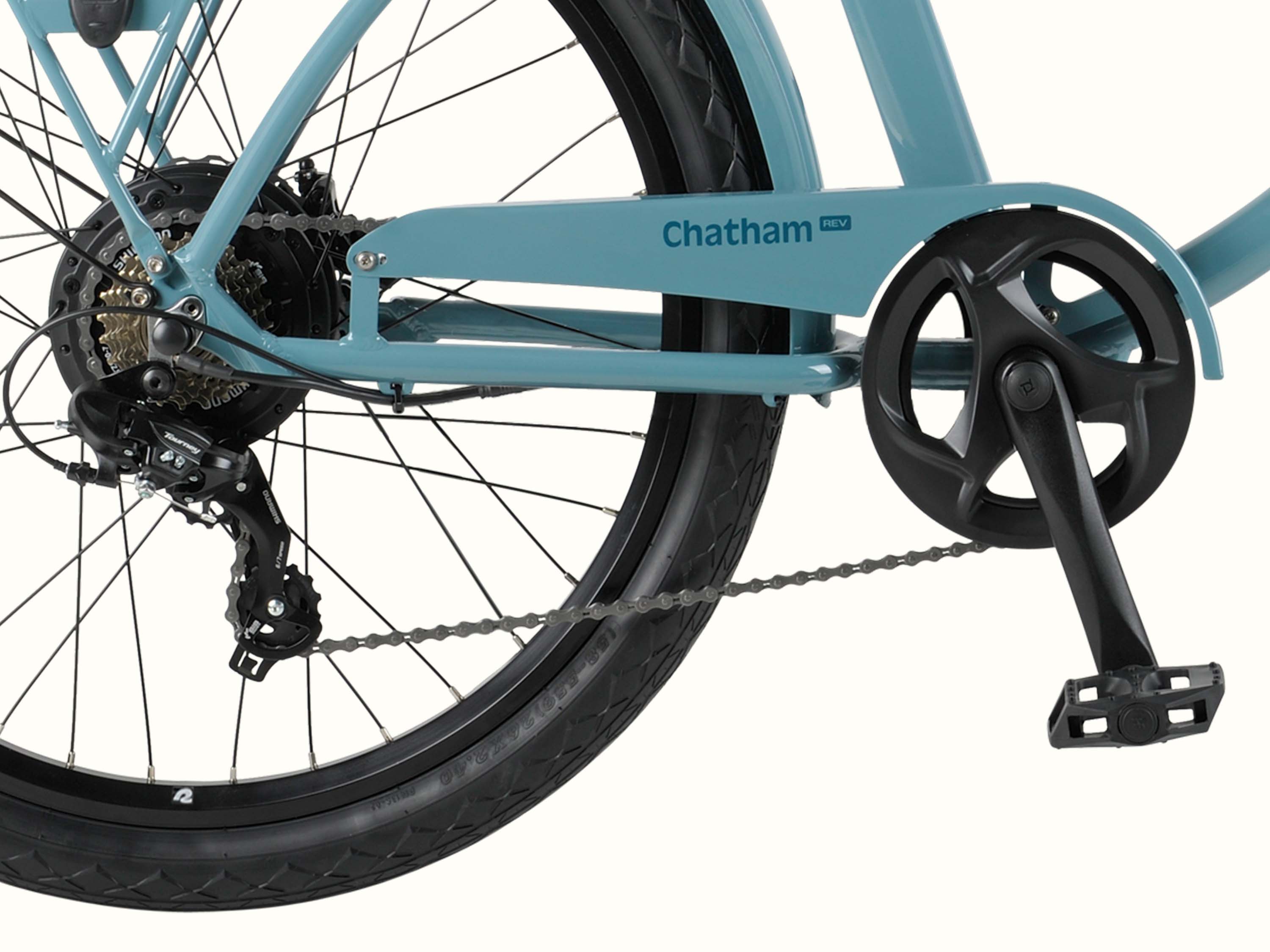

Tackle Inclines or Cruise Flats
With a versatile Shimano 7-speed drivetrain.

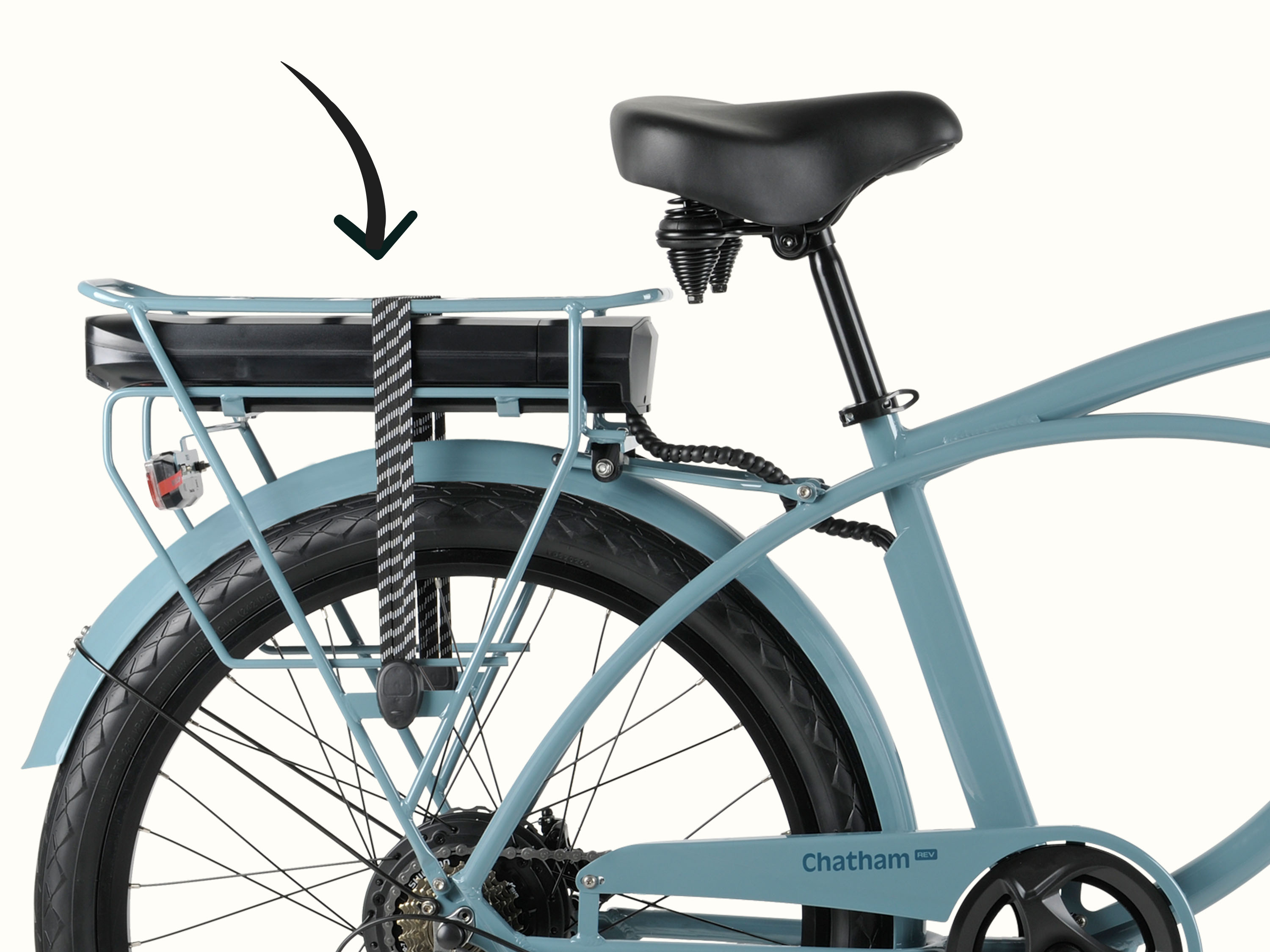

Haul it All
Bring your tote, towel, and other beach essentials on the sturdy rear bike rack.

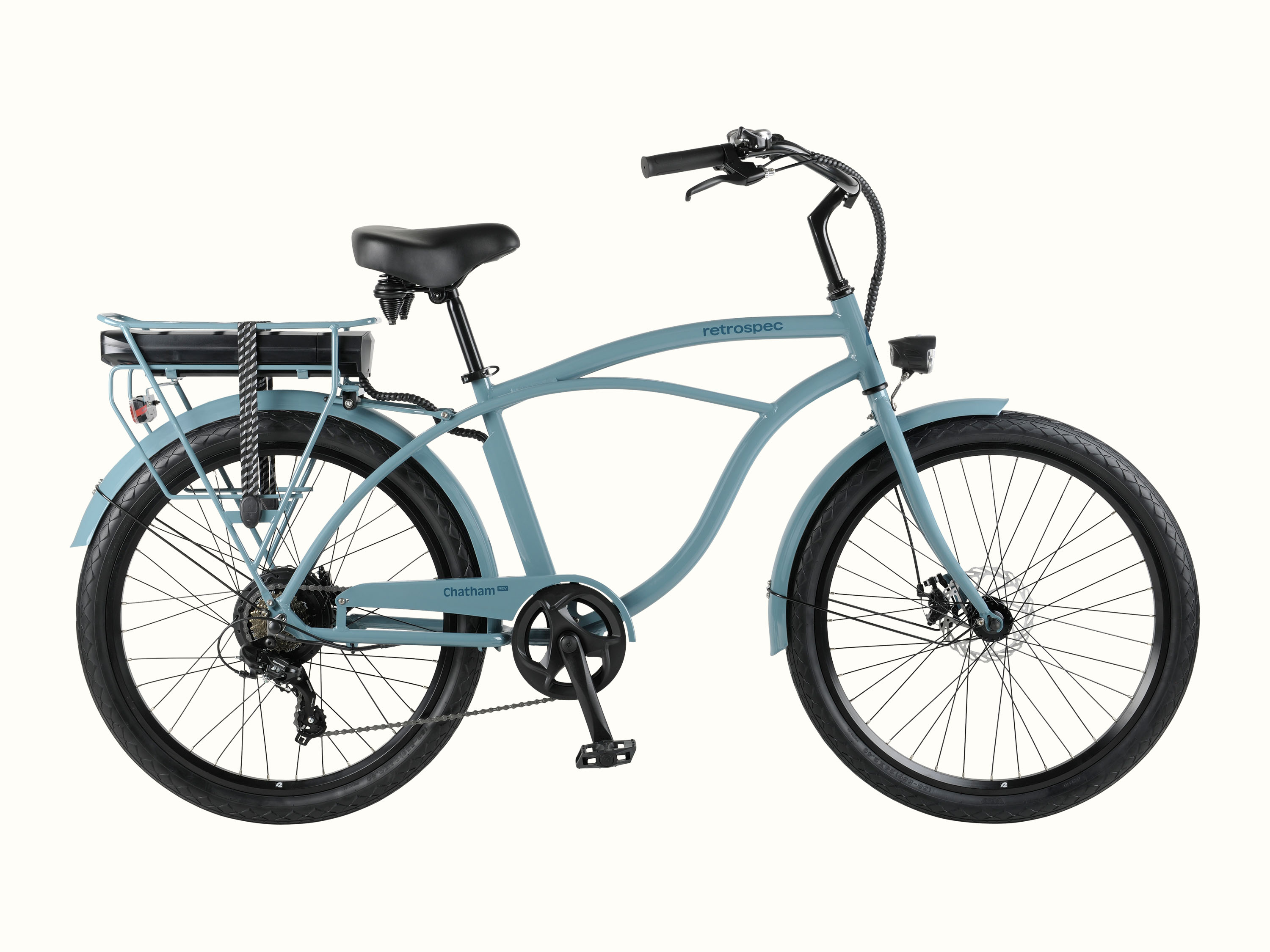

Comfortable Riding Position
Swingback handlebars and a padded saddle promote a comfortable and relaxed upright riding position.
Best for pavement
- SPECIFICATIONS
- SIZING
- FINANCING
- OWNER'S MANUAL
Specification
FRAMESET
- Sizes26" x 457mm/45cm/18"
- MaterialAlloy, 6061 TIG welded
- Dropouts2x rear dropout eyelets, 1x rear fender eyelet, rear rack mounts
- ForkSteel, 28.6mm/1 1/8" Threaded for Quill, TIG welded, 2x eyelets
WHEELSET
- RimsAlloy double-wall, 26" x 36H x 13G
- HubsF: Alloy bolt-on, R: Hub motor bolt-on
- Spokes36H x 13G UCP w/brass nipples
- Tires26 x 2.40, S/V
E-POWER SYSTEM
- 36V/350W MotorBrushless rear hub motor, 9-pin connector. MXUS
- Drive Mode, DisplayPAS/thumb-push throttle-Left side, speed sensor, LED handlebar-mount display panel w/6 assistance levels, w/Start-Aid 6kph (~4mph).
- Charge Time (empty to full)10.4Ah battery (350 & 500W): 5-6 hours
- 36V/350W rangeup to 28 miles
DRIVETRAIN
- Derailleur - RearShimano Tourney 7S
- Shifter(s)Shimano Tourney Thumb Shifter (push/pull) 7S
- CranksetProwheel 170mm x 42T, alum arms, steel chainring, no logos
- ChainKMC 3/32" x 118L
- BBSteel sealed cartridge, 68mm x 126mm
- Freewheel/CogShimano 7-speed 14-28 (14-16-18-20-22-24-28)
COMPONENTS
- HeadsetThreaded, steel, 1 1/8" (28.6mm)
- BrakesJAX Mechanical disc Front & Rear, 160mm
- HandlebarsAlloy low-rise, 680mm width
- GripsComfort grips (for GripShift)
- StemAlloy quill, single-bolt
- SaddleRetrospec Comfort w/springs
- SeatpostAlloy w/integrated micro-adjust clamp, 28.6 x 300mm
- Seatpost ClampAlloy QR
- PedalsPP platform, loose-ball 9/16"
EXTRAS
ARider Height
BInseam
CTop Tube
- KickstandRear mount, adjustable, aluminum alloy
- Rear CarrierSteel. Battery holder & carrier, elastic tie-down strap
- BellAlloy
- Light(s)Front (4x AAA) + Rear (2x AA), batteries included
- FendersSteel w/alloy stays
- ChaincoverSteel
- Tools4 pcs: 15mm open/box, 10mm open/box, 5/6mm hex key, cross (Phillips) screwdriver
- Recommended Weight Limit250lbs
- Item Weight58.5 lbs (battery included)
Sizing
How to measure my inseam for a bike
Your inseam can help you find the perfect sized bike (measuring it properly is similar to pant inseams but measured a little differently). Here's how they work:
- Stand upright with your feet 6-8" apart.
- Using a tape measure or tailor tape, measure from the bottom of your foot to the top of the inside of your leg.
- Compare your inseam measurement to the standover height of the bike. You should have about an inch of space between your body and the top tube.
| SIZE | HEIGHT RANGE | STANDOVER HEIGHT |
| Frame: 18" | 5'6"-6'4" | 31" |
